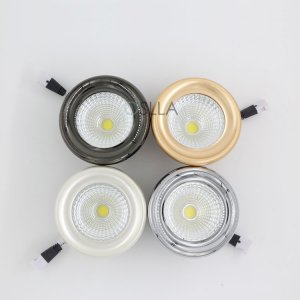

| Power: | 7W/9W/12W |
| Shape: | Five Corners |
| Housing Color: | French gold/pearl black |
| LED: | Epistar |
| Beam angle: | /24°/38°/60°/110° |
| Size: | 2.5 inch |
| Cut out: | φ70/φ75 |
| Materials: | Aluminum |
| IP Grade: | IP20 |
| Dimmable: | 0/1-10V, Triac, 2.4 G dimming |
30000h lifesspan
Patented unique design
OEM avaliable
CE RoHS UL FCC Certificated
3 years warranty
Photo Parameters
| Power | CCT | Lumen | Efficacy | CRI |
|---|---|---|---|---|
| 7W | WW/NW/DW | 630lm±10% | 90lm/w | >80/>90 |
| 9W | WW/NW/DW | 810lm±10% | 90lm/w | >80/>90 |
| 12W | WW/NW/DW | 1080lm±10% | 90lm/w | >80/>90 |
Electrical Parameters
Power: 7W/9W/12W
Input Voltage: 95-265VAC/100-130VAC 50/60Hz
Output current: 280mA±5%
PF: >0.5/ >0.9
Surge Protection: 1.5KV
